Description

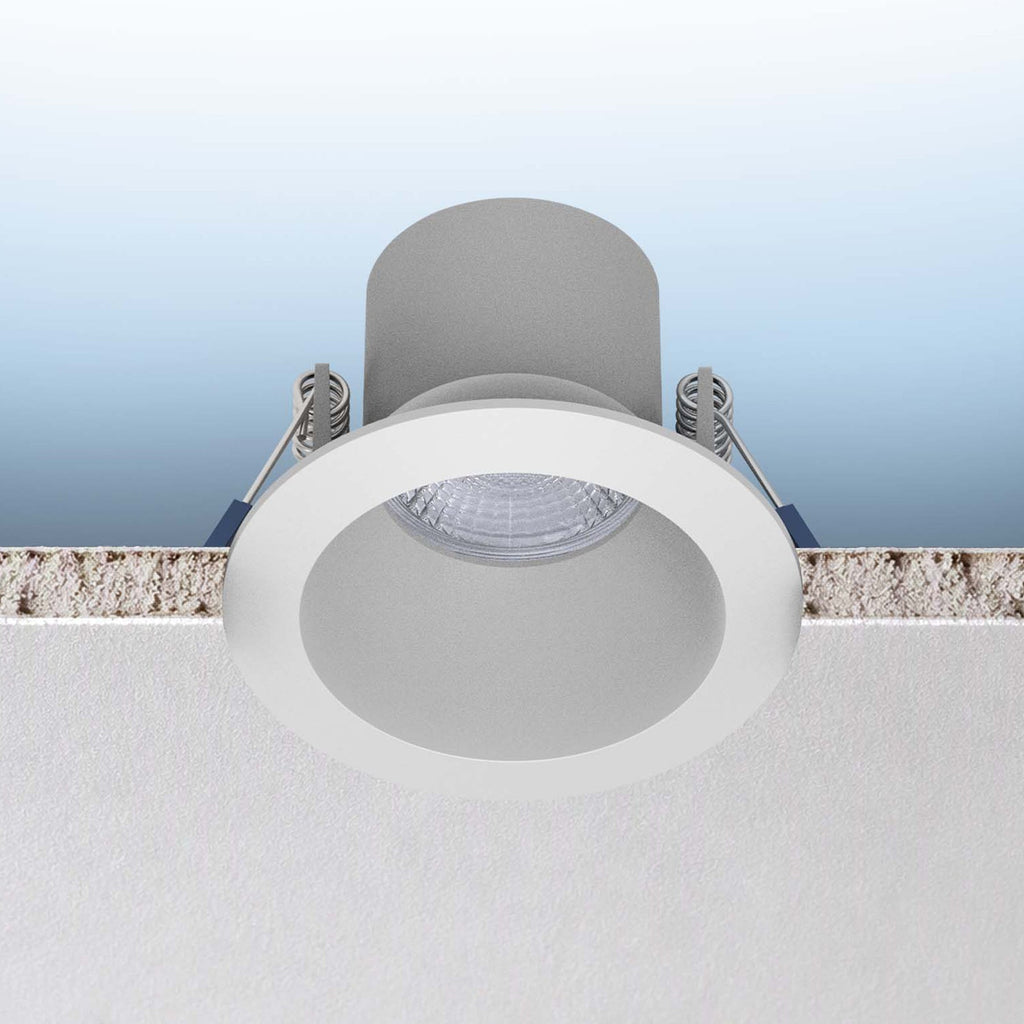

A regressed 3" downlight that works with almost any dimmer, a good choice when you're not sure what dimmers are in the house or for commercial jobs.
- Light color selectable on the fixture (5 options)
- Universal voltage, dual dimming (TRIAC and 0-10V)
- Wet location rated
Pick your light color with the switch on the fixture: 2700K warm (bedrooms, living rooms) · 3000K soft white (kitchens, dining rooms) · 3500K natural · 4000K cool white (bathrooms, laundry rooms, garages) · 5000K daylight (basements, work areas). Not sure? Most homes use 3000K.
Which size do I need? Go by the cutout, the size of the hole in the ceiling. For new installs, cut the hole to the cutout size listed below. For replacements, measure your existing hole.
Specifications
| White | Black | |
|---|---|---|

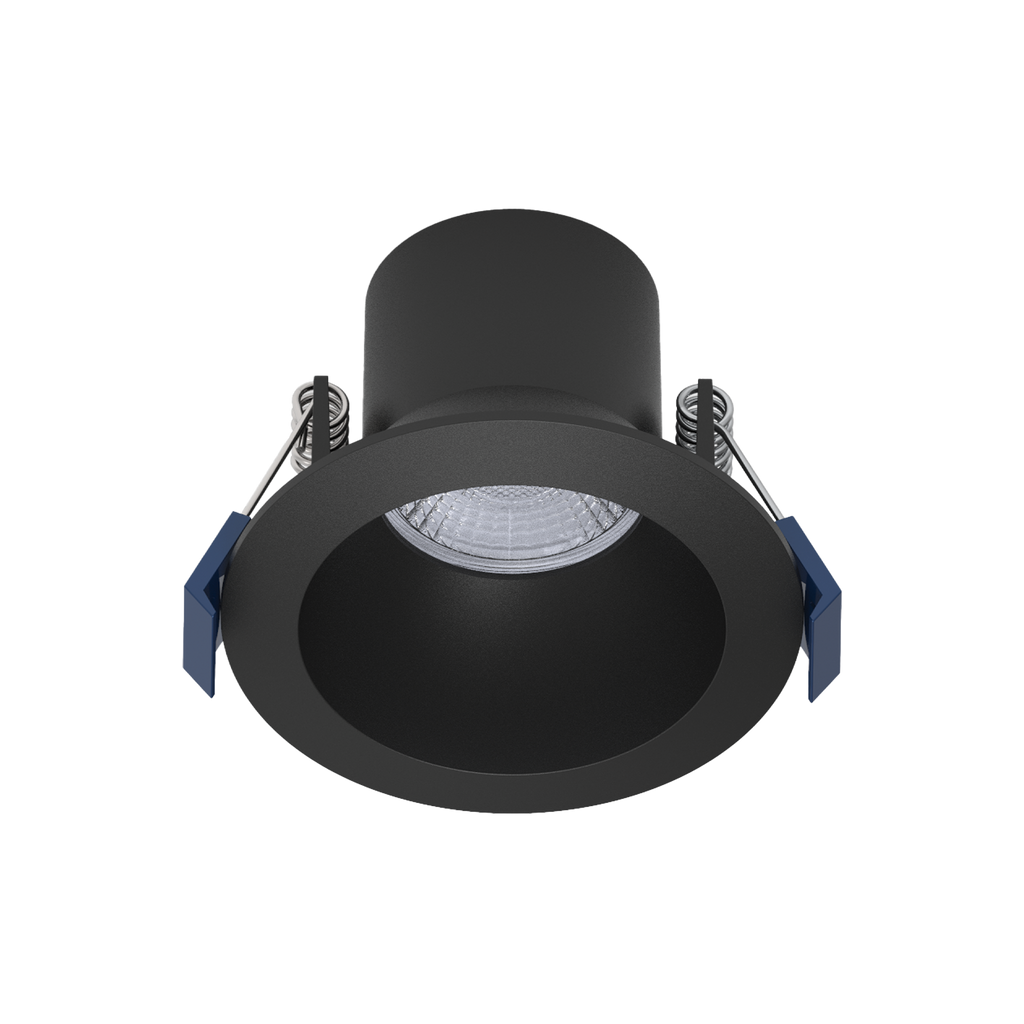

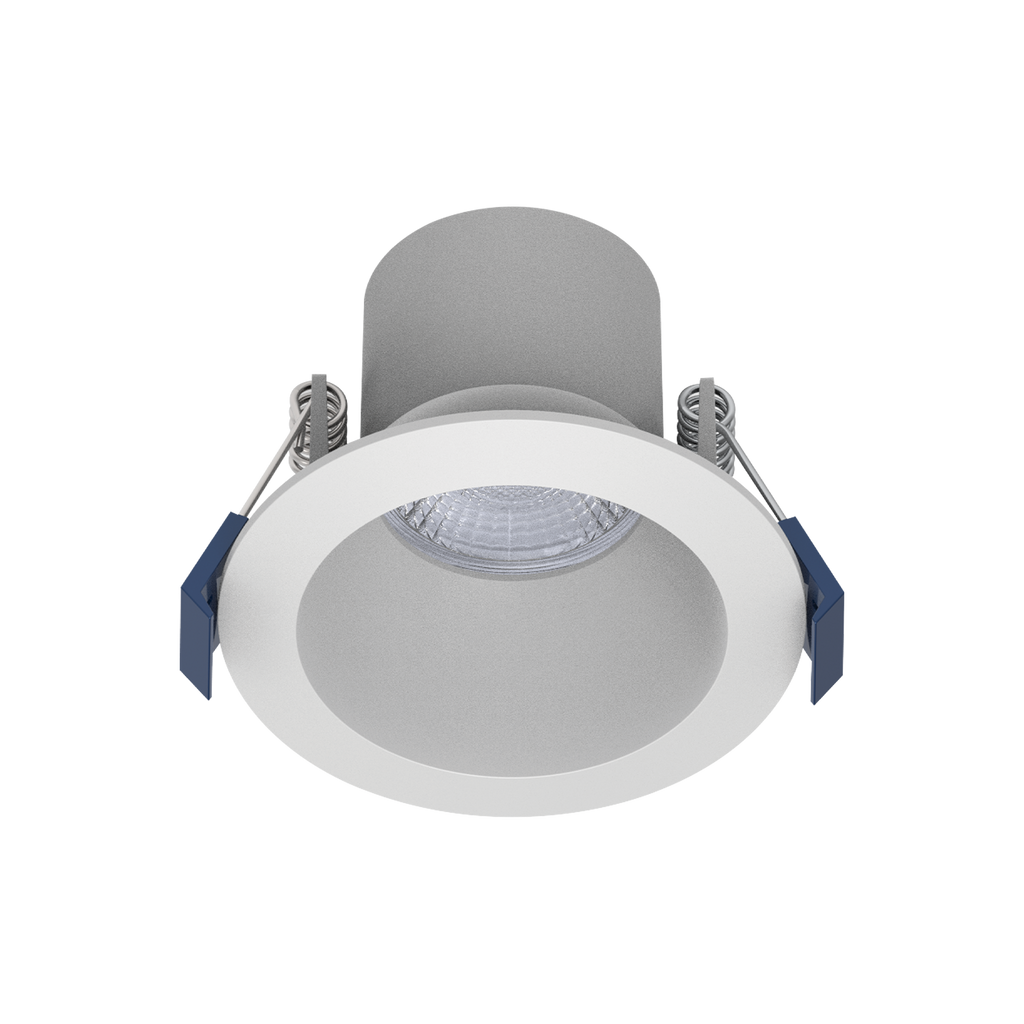

| Item # | PS23364 | PS23365 |
| Cutout (hole size) | 3" | 3" |
| Outside diameter | 3.54" | 3.54" |
| Depth / height | 2.63" | 2.63" |
| Watts | 8W | 8W |
| Lumens | 800 | 650 |
| Beam angle | 45° | 45° |
| CRI | 90 | 90 |
| Color temperature | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K |
| Dimming | TRIAC/0-10V | TRIAC/0-10V |
| Voltage | 120-277V | 120-277V |
| Location rating | Wet | Wet |
| Case pack | 16 | 16 |
Doing a whole house, a renovation or a building? Contractors and full-case orders get better pricing. Call (718) 331-3000 or email joseph@platinumsupplies.com.
