Description

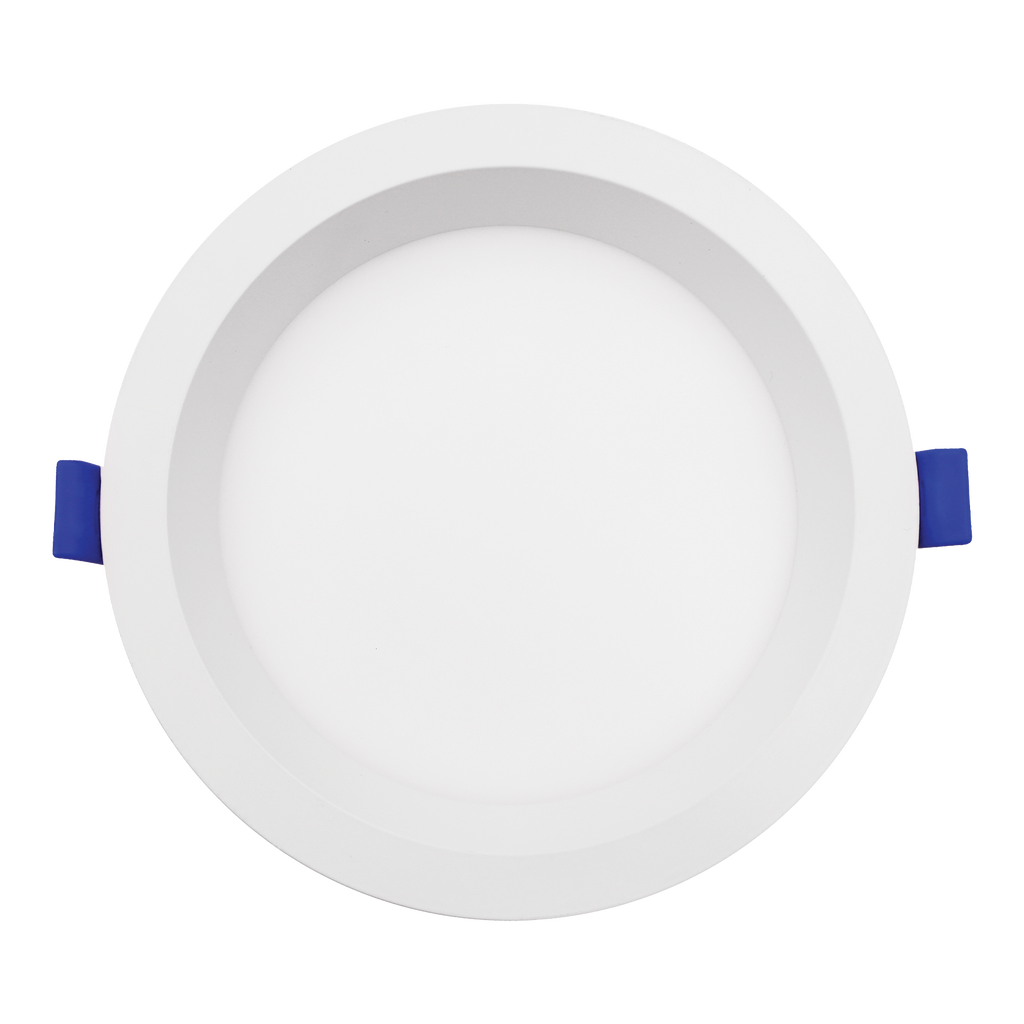

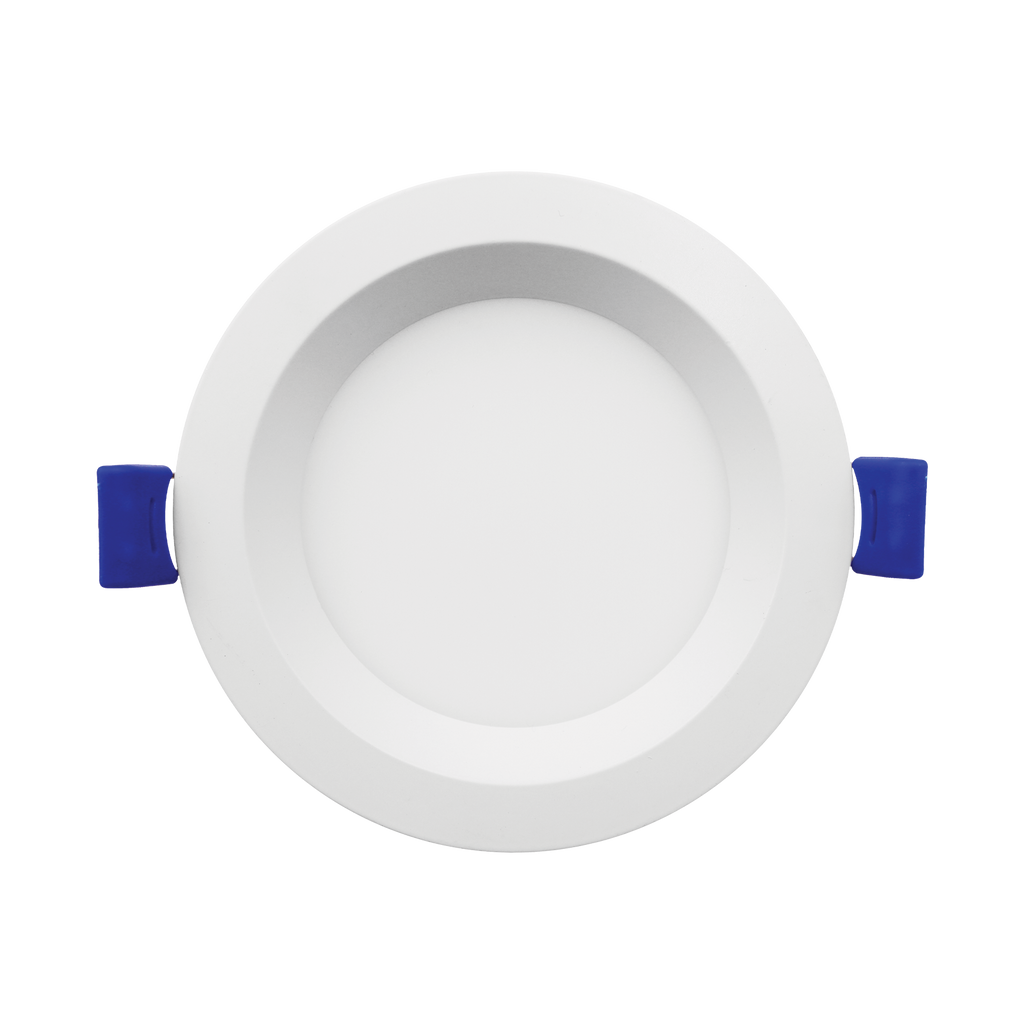

A slim recessed panel with a "dim to warm" setting: the light gets warmer and cozier as you dim it, like an old incandescent bulb. Great for living rooms, dining rooms and bedrooms.
- Dim-to-warm setting
- Light color selectable (5 options) and 2 brightness settings
- Universal voltage, dual dimming (TRIAC and 0-10V)
- Slim: about 1.3"–1.5" deep
- Wet location rated

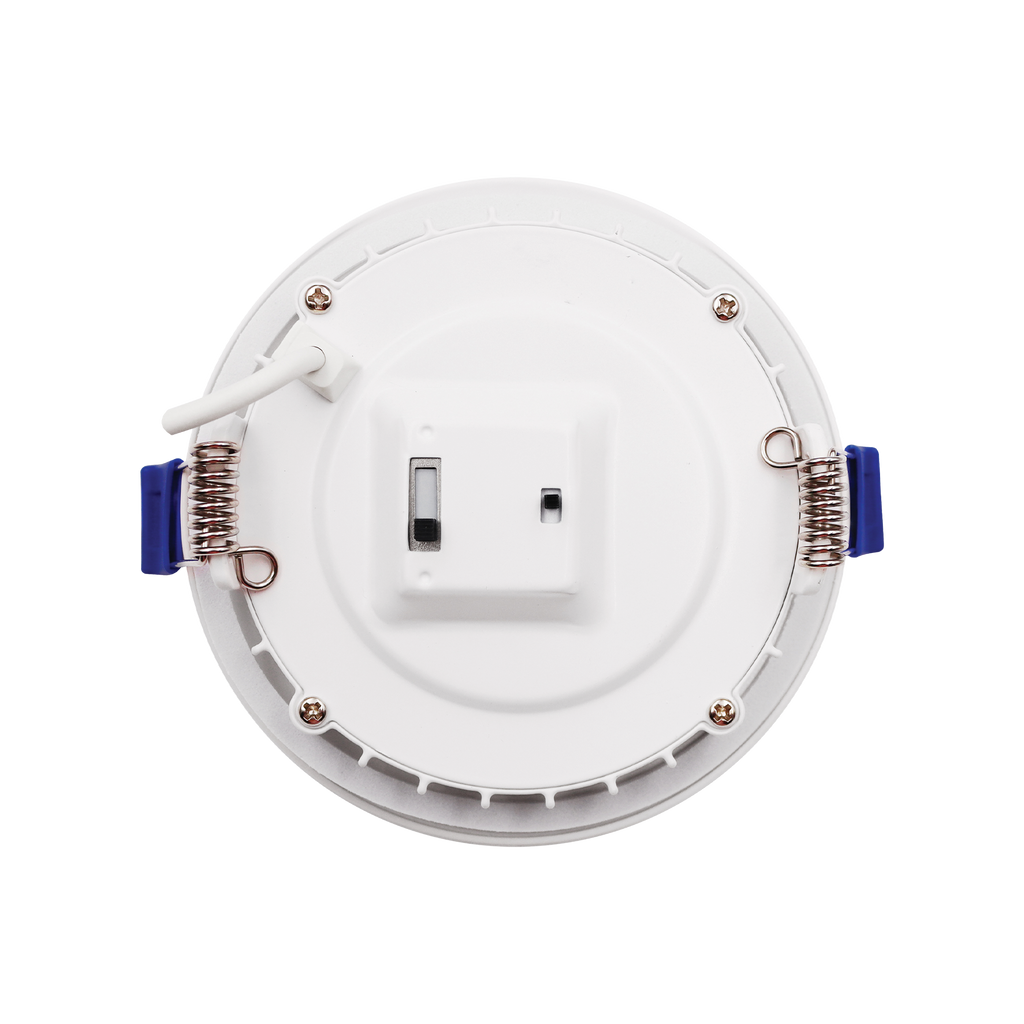

Pick your light color with the switch on the fixture: 2700K warm (bedrooms, living rooms) · 3000K soft white (kitchens, dining rooms) · 3500K natural · 4000K cool white (bathrooms, laundry rooms, garages) · 5000K daylight (basements, work areas). Not sure? Most homes use 3000K.
Which size do I need? Go by the cutout, the size of the hole in the ceiling. For new installs, cut the hole to the cutout size listed below. For replacements, measure your existing hole.
Specifications
| 4" | 6" | |
|---|---|---|
| Item # | PS22832 | PS22836 |
| Cutout (hole size) | 4.25" | 6.18" |
| Outside diameter | 4.73" | 6.78" |
| Depth / height | 1.29" | 1.52" |
| Watts | 8/10W | 12/15W |
| Lumens | 600/900 | 770/1150 |
| Beam angle | 100° | 100° |
| CRI | 90 | 90 |
| Color temperature | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K |
| Dimming | TRIAC/0-10V | TRIAC/0-10V |
| Voltage | 120-277V | 120-277V |
| Location rating | Wet | Wet |
| Case pack | 24 | 12 |
Doing a whole house, a renovation or a building? Contractors and full-case orders get better pricing. Call (718) 331-3000 or email joseph@platinumsupplies.com.
